Containers become more common in the modern hospitals. Remeda´s handling systems for containers and instrument trays ease the work load for the personnel and reduces heavy lifting. At the same time it increases the efficiency with help of this complete system for handling containers and instrument trays from the sterilization department to the operating theatres.
This system creates the possibility for the staff to prepare the CUBE for each specific operation just-in-time. The system includes the rack called the CUBE, a lift to handle the rack and a transport unit.
Shelf racks
The shelf rack shelves can slide out which facilitate easy lifting of the containers in its handles from the correct lifting position.
The goods are put on the shelf rack after packing and the shelf rack is then easily handled with a lifting trolley.
When handling the goods using the CUBE system, it will always be done in the correct lifting height thanks to the lifting trolley that is a part of the system. The lifting trolley is both used in the central sterilization department and in the operation department.

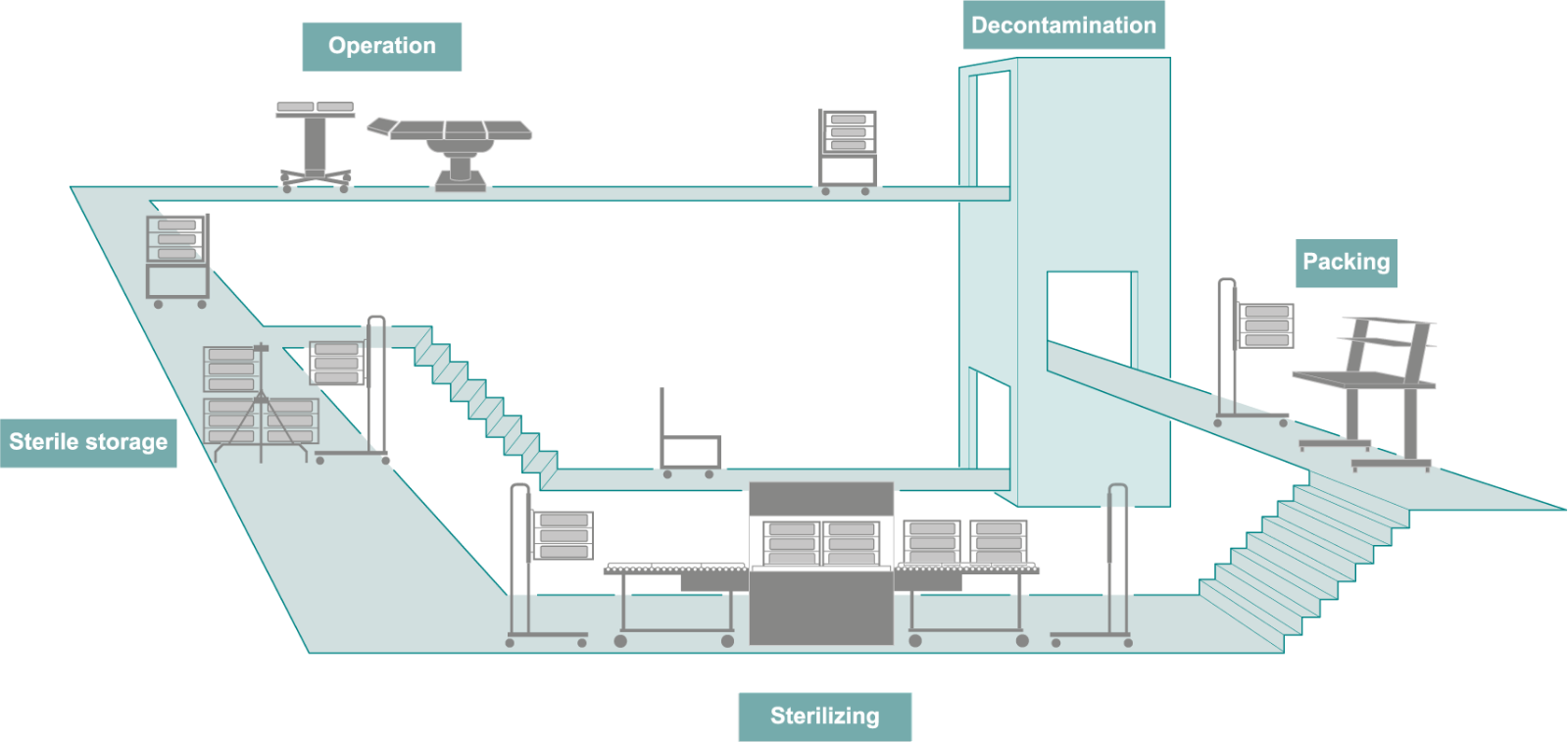

The goods stays on the shelf rack from the packing table through the sterilizer, to the operation department and back to the central sterilization department.
130 52 Shelf rack
| Reference number |
Shelf rack mm (inch) |
Shelfsize mm (inch) |
Description |
|---|---|---|---|
| 130 52-01 | 700x600x596 (27,6×23,6×23,5) |
610x580x165 (24,0×22,8×6,5) |
Removable shelves |
| 130 52-02 | 700x600x596 (27,6×23,6×23,5) |
610x580x165
(24,0×22,8×6,5)
|
Fixed shelves |
130 52 Shelf rack
| Reference number |
Shelf rack mm (inch) |
Shelfsize mm (inch) |
Description |
|---|---|---|---|
| 130 52-03 | 800x600x596 (31,5×23,6×23,5) |
710x580x165 (28,0×22,8×6,5) |
Internal use |
| 130 52-04 | 800x600x596 (31,5×23,6×23,5) |
710x580x165
(28,0×22,8×6,5)
|
Robot |
130 50 Lift trolley
10022 has the same features as the 10020 table, plus it can be used both as an instrument table and a mayo table.
The tabletop is larger than on a mayo table and can support more weight. Because of the four wheels it also becomes more stable than a mayo table when weight is applied.
The buttons are situated under the tabletop and can be configured to be on the side of the table or in the front of the table
| Reference number |
Height mm (inch) |
Capacity kg/lbs |
|---|---|---|
| 130 50-01 | 190-990 (7,5-39) | 90 (198) |
| 130 50-02 | 450-950 (17,7-37,4) | 90 (198) |
130 51 Transport trolley
The transport trolley is used to transport the CUBE between central sterilization department and the operation department.
The trolleys can be connected to each other in order to transport more cubes at a time.
There are several types of transport trolleys available, both open version and a trolley that is closed with stainless steel cover
| Reference number |
Dimensions mm (inch) |
No. of Cubes | Description |
|---|---|---|---|
| 130 51-01 | 850x760x1600 (33,5×29,9×63,0) |
2 | Open |
| 130 51-02 | 720x660x1130 (28,3×26,0x44,5) |
1 | Open |
| 130 51-03 | 860x760x1700 (33,9×29,9×66,9) |
2 | Closed |
130 53 Transport trolley
The 10023 table has the same features as the 10020 table except that the pillar is moved to the back of the tabletop. Because of this, it is possible to move the table over the operating table to reach the items when standing on the other side, just like with a mayo table.
The special shape of the chassis of the table also makes it possible to stack the tables under each other to save space when not in use. This is an appreciated feature when working in preparation rooms where the space is limited.
| Reference number |
Shelf rack mm (inch) |
Shelf size mm (inch) |
|---|---|---|
| 130 53-01 | 800x600x1220 (31,5×23,6×48,0) |
710x580x235 (28,0×22,8×9,3) |
130 55 Washroom trolley
The washroom trolley is used to handle the CUBE in the central sterilization department.
With help of the trolley, the cube and the transport trolley can easily be moved around in the washing area.
With help of the washroom trolley the goods will be adjusted to the correct working and lifting height for the personnel.
| Reference number |
Height mm (inch) |
Capacity kg/lbs |
|---|---|---|
| 130 55-01 | 305-555 (12,0-21,9) | 150 (330) |
130 56 Transport trolley
10022 has the same features as the 10020 table, plus it can be used both as an instrument table and a mayo table.
The tabletop is larger than on a mayo table and can support more weight. Because of the four wheels it also becomes more stable than a mayo table when weight is applied.
The buttons are situated under the tabletop and can be configured to be on the side of the table or in the front of the table
| Reference number |
Height mm (inch) |
Capacity kg/lbs |
|---|---|---|
| 130 56-01 | 454-854 (17,9-33,6) | 150 (330) |
130 54 Storage system
