The Remeda Multi loader is a fully automated system which uses single point loading and unloading of baskets or racks. It is designed to minimize the personnels handling of the goods and can work in a closed working environment without the need of supervison.
The Multi loader’s shuttle collect goods from one or several conveyors and load it into the sterilizer when it is available.
The integrated control system control the number of cycles of each sterilizer and select the sterilizer with the least amount of cycles. This is done to make sure that all the sterilizers are used the same amount.
The control of the loader communicate with the control of the sterilizer.
The Remeda Multi loader is suited for sterilization department where there is a space restriction or when the sterilisers are situated in a closed space.
Different combination with multi loading and automatic unloading can be done. Remeda has a wide range of loading and transport trolley´s optimised for use with the Multi loader.

The Remeda loading trolley is designed to load and unload the sterilizers chamber. On top of the trolley can be placed either a basket feeder or shelf rack/transfer platform depending on what kind of goods it is supposed to handle. The height of the trolley can be adjusted so that loading and unloading can be carried out at suitable working height. Thanks to the unique lifting system, the trolley is exceptionally easy to clean. The height adjustment is electric and controlled by an easy operated control placed on the handle. The trolley is delivered with a charger for the battery. The handle is mounted on the bottom part of the trolley, and stays at normal height. The top is equipped with a guiding and locking system, to lock the trolley to the autoclave chamber rails. The trolley is manufactured in stainless steel with a frame in stainless steel profile piping. Equipped with four castors with diameter 125mm, of which 2 with brakes and 2 with direction locking. The trolley is designed for autoclaves with square chamber opening width of about 660-700mm. The trolley is available in a fixed height version as well.

El carro de carga semiautomática (SAL) de Remeda está diseñado para cargar y descargar la cámara del esterilizador con solo presionar un botón. En la parte superior del carro se puede colocar una estantería o una plataforma de transferencia, dependiendo del tipo de mercancía que se supone que debe manejar. La altura del carro se puede ajustar para que la carga y descarga se pueda realizar a una altura de trabajo adecuada. Gracias al exclusivo sistema de elevación, el carro es excepcionalmente fácil de limpiar. El ajuste de altura es eléctrico y se controla mediante un control de fácil manejo colocado en el mango. El asa está montada en la parte inferior del carro y permanece a una altura normal durante el funcionamiento. La parte superior está equipada con un sistema de guía y bloqueo, para bloquear el carro a los rieles de la cámara del autoclave. El carro está fabricado en acero inoxidable con un marco en tubería perfilada de acero inoxidable. Equipado con cuatro ruedas de 125 mm de diámetro, de las cuales 2 con freno y 2 con bloqueo de dirección. El carro está diseñado para autoclaves con un ancho de apertura de la cámara cuadrada de aproximadamente 660-700 mm. El carro también está disponible en una versión de altura fija.

The Remeda transfer platform is used together with a trolley or automatic loader to carry the goods through the sterilizers.
The transfer platform allows goods to be pre-loaded at the packing table and is manufactured in stainless steel, where baskets, containers or packs can be placed. The transfer platform is used in a circulating flow, and is returned to the clean, loading side after the sterilization process.

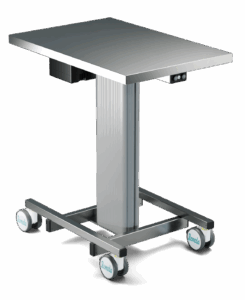

El carro de transferencia se utiliza para manipular mercancías dentro del departamento central de esterilización. Con la ayuda del carro de transferencia eléctrico ajustable en altura, la mercancía se puede mover fácilmente y ajustar a la altura de trabajo y elevación adecuada para el personal.
